mikan Architecture

這份文件整理 mikan 專案的核心架構，重點放在:

多平台訊息如何進入系統
session / context 如何持久化
agent 如何透過 tools 與 sandbox 執行工作
login / vault / session viewer / events 如何掛接到主流程

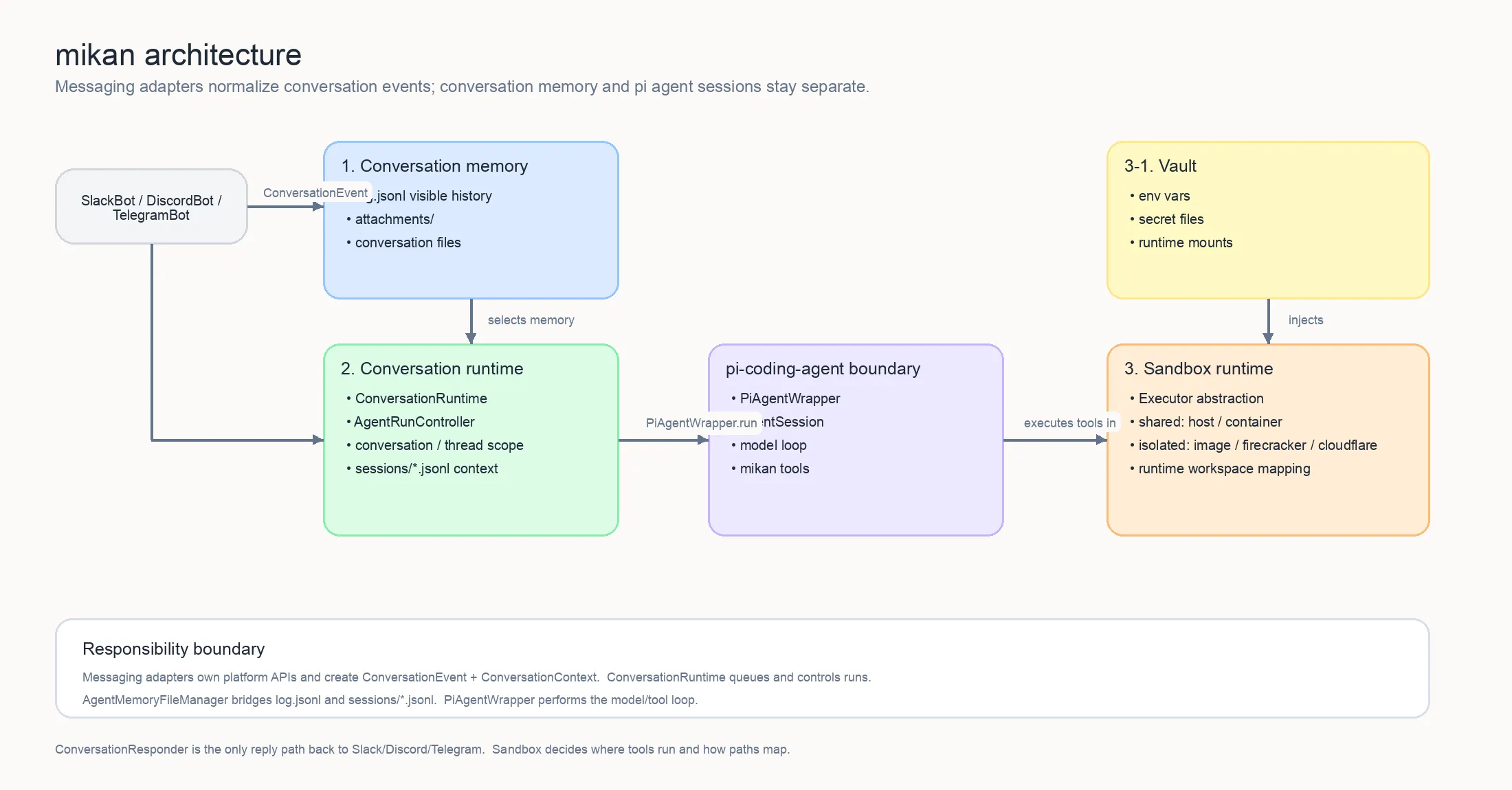

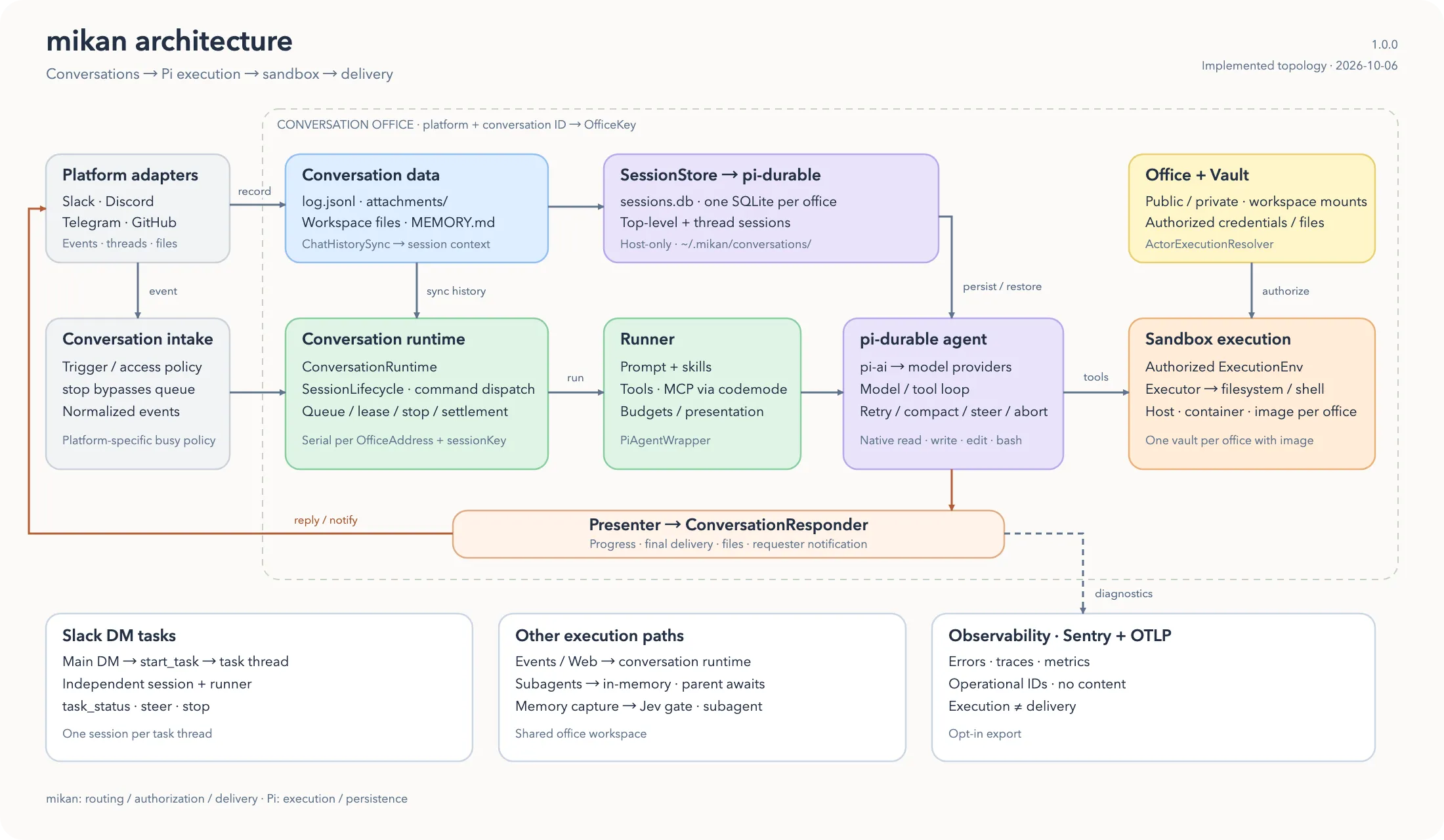

1. 系統總覽

flowchart LR
  subgraph Clients["Chat Platforms"]
    Slack["Slack"]
    Telegram["Telegram"]
    Discord["Discord"]
  end

  subgraph Adapters["Platform Adapters"]
    SlackAdapter["src/adapters/slack/*"]
    TelegramAdapter["src/adapters/telegram/*"]
    DiscordAdapter["src/adapters/discord/*"]
  end

  subgraph Runtime["Core Runtime"]
    Main["src/main.ts\nCLI bootstrap"]
    SessionRuntime["src/runtime/session-runtime.ts\nSessionRuntime + runner cache"]
    Orchestrator["src/runtime/conversation-orchestrator.ts\nrun lifecycle + commands"]
    AgentRunner["src/agent.ts\ncreateRunner()"]
  end

  subgraph AgentStack["Agent Stack"]
    PiAgent["@earendil-works/pi-agent-core\nAgent"]
    PiCoding["@earendil-works/pi-coding-agent\nAgentSession / SessionManager / Skills"]
    PiAI["@earendil-works/pi-ai\nprovider + model"]
    MikanTools["src/tools/*\nread / bash / edit / write / event / attach"]
    Executor["src/sandbox/*\nExecutor\nshared: host / container\nisolated: image / firecracker / cloudflare"]
  end

  subgraph Persistence["Project Workspace"]
    ConversationDir["<workspace>/<conversation>/\nlog.jsonl / MEMORY.md / attachments / skills"]
    Sessions["sessions/\ncurrent + *.jsonl"]
    EventsDir["events/*.json"]
    LocalSettings["<conversation>/settings.json"]
  end

  subgraph StateDir["State Dir (~/.mikan or --state-dir)"]
    GlobalSettings["settings.json\nglobal defaults"]
    Vaults["vaults/\nconversation-scoped secret directories"]
    LinkTokens["admin/login/session tokens\nin-memory stores"]
  end

  subgraph Services["Auxiliary Services"]
    VaultManager["src/vault.ts\nFileVaultManager"]
    Provisioner["src/provisioner.ts\nDockerContainerManager"]
    LinkServer["src/login/portal.ts\nlink/admin/session portal host"]
    SessionViewer["src/session-view/*\nweb session viewer"]
    EventsWatcher["src/events.ts\nwatch + schedule events"]
  end

  Slack --> SlackAdapter
  Telegram --> TelegramAdapter
  Discord --> DiscordAdapter

  SlackAdapter --> Main
  TelegramAdapter --> Main
  DiscordAdapter --> Main

  Main --> SessionRuntime
  SessionRuntime --> Orchestrator
  SessionRuntime --> AgentRunner

  AgentRunner --> PiAgent
  AgentRunner --> PiCoding
  AgentRunner --> PiAI
  AgentRunner --> MikanTools
  MikanTools --> Executor

  Main --> VaultManager
  Main --> Provisioner
  Main --> LinkServer
  Main --> EventsWatcher
  LinkServer --> SessionViewer

  AgentRunner --> ConversationDir
  AgentRunner --> Sessions
  Main --> GlobalSettings
  EventsWatcher --> EventsDir
  VaultManager --> Vaults
  LinkServer --> LinkTokens

  Executor -. shared: host / container; isolated: image / firecracker / cloudflare .-> ConversationDir
  Provisioner -. isolated image sandbox lifecycle .-> Executor
  VaultManager -. env + mount routing .-> Executor
  EventsWatcher -. enqueue BotEvent .-> Main

2. 主要分層

A. 平台接入層

src/adapters/slack/*
src/adapters/telegram/*
src/adapters/discord/*
src/adapter.ts

職責:

接 Slack / Telegram / Discord 原生事件
轉成統一的 BotEvent、ChatMessage、ChatResponseContext
依平台規則計算 sessionKey
封裝回覆、typing、working、檔案上傳等平台差異

B. 核心協調層

src/main.ts
src/runtime/session-runtime.ts
src/runtime/conversation-orchestrator.ts
src/sessions/store.ts
src/sessions/chat-session-manager.ts

職責:

啟動 CLI、讀取 env / args / settings.json
建立 SessionRuntime 作為各平台 bot 的 BotHandler
透過 ConversationOrchestrator dispatch /login、/session、stop、new 等控制命令
管理 conversationStates 與 per-session queue，避免同一 session 重複執行
決定每個 session scope 對應哪個 AgentRunner

C. Agent 執行層

src/agent.ts
src/context.ts
src/tools/*

職責:

建立 AgentRunner
載入模型、skills、memory、session context
將使用者訊息送入 pi-agent-core / pi-coding-agent
把 tool calls 接到本地 read/bash/edit/write/event/attach
把 tool 結果回寫 session，並透過 adapter 回傳給平台

D. 執行環境層

src/sandbox/*
src/provisioner.ts
src/execution-resolver.ts

職責:

統一抽象 Executor
sandbox runtime 分成兩類:
- shared: host / container:<name>，同一個 host 或指定 container 共用
- isolated: image:<image> / firecracker:* / cloudflare:*，依 actor/conversation/vault 路由到隔離的執行環境
透過 ActorExecutionResolver 依 user/conversation/vault 決定實際 executor
在 image 模式下自動建立與回收 Docker container，並把 image:<image> 解析成 concrete container:<name> executor

E. 狀態與持久化層

src/sessions/store.ts
src/conversation-history.ts
src/context.ts
src/vault.ts

職責:

session 檔案管理: sessions/current 與 *.jsonl
log.jsonl 與 structured session 的雙軌歷史保存
workspace / conversation 級別 MEMORY.md
per-conversation vault 憑證與 mount / env 注入

F. 輔助服務層

src/login/*
src/admin/*
src/session-view/*
src/events.ts

職責:

src/login/portal.ts 目前是 link server host，會掛接 login/vault、admin、session-view routes
提供 Web login portal，支援 API key 與 OAuth 寫入 vault
提供 admin portal，支援 conversation/settings/workspace/events/skills 管理與 link generation
提供 session viewer；目前可顯示 session timeline，且在 interactive wiring 啟用時可透過 /session/message 送訊息
監看 events/*.json，把排程事件重新注入 bot 流程

3. 訊息處理流程

sequenceDiagram
  participant U as User
  participant P as Slack / Telegram / Discord
  participant A as Adapter
  participant M as SessionRuntime / Orchestrator
  participant S as sessions/store.ts
  participant R as agent.ts / AgentRunner
  participant T as tools/*
  participant X as sandbox Executor
  participant W as Workspace / sessions

  U->>P: 發送訊息 / mention / reply
  P->>A: 平台事件
  A->>M: BotEvent + ChatMessage + ResponseContext
  M->>M: queue event + dispatch commands
  M->>S: resolve session scope
  S-->>M: contextFile + sessionDir
  M->>R: getState() / run()
  R->>W: 讀取 MEMORY.md / sessions/*.jsonl；必要時查 log.jsonl
  R->>R: 建立 system prompt / skills / model / session context
  R->>T: 執行工具
  T->>X: read / bash / edit / write / event / attach
  X-->>T: tool result
  T-->>R: 結果回傳
  R->>W: 寫入 structured session；adapter 記錄平台 log
  R-->>M: final response
  M-->>A: 回覆內容 / 診斷 / 檔案
  A-->>P: 平台訊息更新
  P-->>U: 使用者看到回覆

4. Session 與檔案佈局

mikan 的上下文不是只靠記憶體，而是主要落在 workspace 目錄:

<workspace>/
├── MEMORY.md                  # workspace 級記憶
├── events/                    # 排程與外部事件
└── <conversationId>/
    ├── settings.json          # conversation-local overrides
    ├── MEMORY.md              # conversation 級記憶
    ├── log.jsonl              # 可 grep 的人類可讀訊息歷史
    ├── attachments/           # 平台附件下載
    ├── scratch/               # 執行中的工作區
    ├── skills/                # conversation 自訂 skills
    └── sessions/
        ├── current            # top-level session pointer
        ├── <timestamp>_<id>.jsonl
        └── <scope_id>.jsonl   # thread / reply scoped sessions

設計重點:

log.jsonl 是平台對話紀錄：Slack/Discord/Telegram 實際發生過什麼
sessions/*.jsonl 是 LLM 工作上下文/工作紀錄：mikan 拿什麼給 LLM 看，以及 LLM/tool 做了什麼
top-level session 用 current 指標，但 current 不是 channel history；缺失時可從 log.jsonl 重建最近 top-level 工作上下文
thread / reply session 用固定檔名，讓 scoped session 可被單獨追蹤
Slack top-level messages share the channel session; Slack thread replies use conversationId:threadTs
Slack events first materialize a top-level anchor message, then run in conversationId:anchorTs

flowchart TD
  User["User in DM"] --> LoginCmd["/login"]
  LoginCmd --> Main["main.ts"]
  Main --> LinkToken["InMemoryLinkTokenStore"]
  Main --> VaultRouting["vault-routing.ts"]
  Main --> LinkServer["login/portal.ts"]
  LinkServer --> Browser["Browser Portal"]
  Browser --> OAuth["OAuth provider / API key form"]
  OAuth --> LinkServer
  LinkServer --> VaultManager["vault.ts\nwrite env/file into vault"]
  VaultManager --> VaultDir["state-dir/vaults/<vaultId>/"]
  VaultManager --> Resolver["execution-resolver.ts"]
  Resolver --> Sandbox["host / container / image / firecracker / cloudflare"]

重點:

憑證不直接進 workspace
vault 存在 --state-dir
執行時才由 conversation vault 路由到對應 sandbox
image / firecracker / cloudflare 模式使用 per-actor/per-conversation vault routing；container:<name> 使用 shared container vault；host 不注入 vault env

6. Events 與一般對話的差異

events/*.json 會被 EventsWatcher 監看，之後轉成 BotEvent 再走一次正常流程。也就是說 events 不是獨立執行器，而是「另一個訊息入口」。

這讓下列能力共用同一套機制:

session context
vault routing
tool execution
平台回覆
stop / running state 管理

7. 架構結論

如果用一句話總結，mikan 的核心其實是:

一個以 main.ts 為協調中心、以 agent.ts 為執行核心、以 session/vault/sandbox 為基礎設施的多平台 AI agent bot。

可以把它理解成 6 個核心子系統:

Platform adapters
Bot runtime orchestration
Agent + tools
Session/context persistence
Vault + sandbox execution routing
Web/event side services
